Baoji / SK66Q/ 1500mm CNC Düz Banko Torna

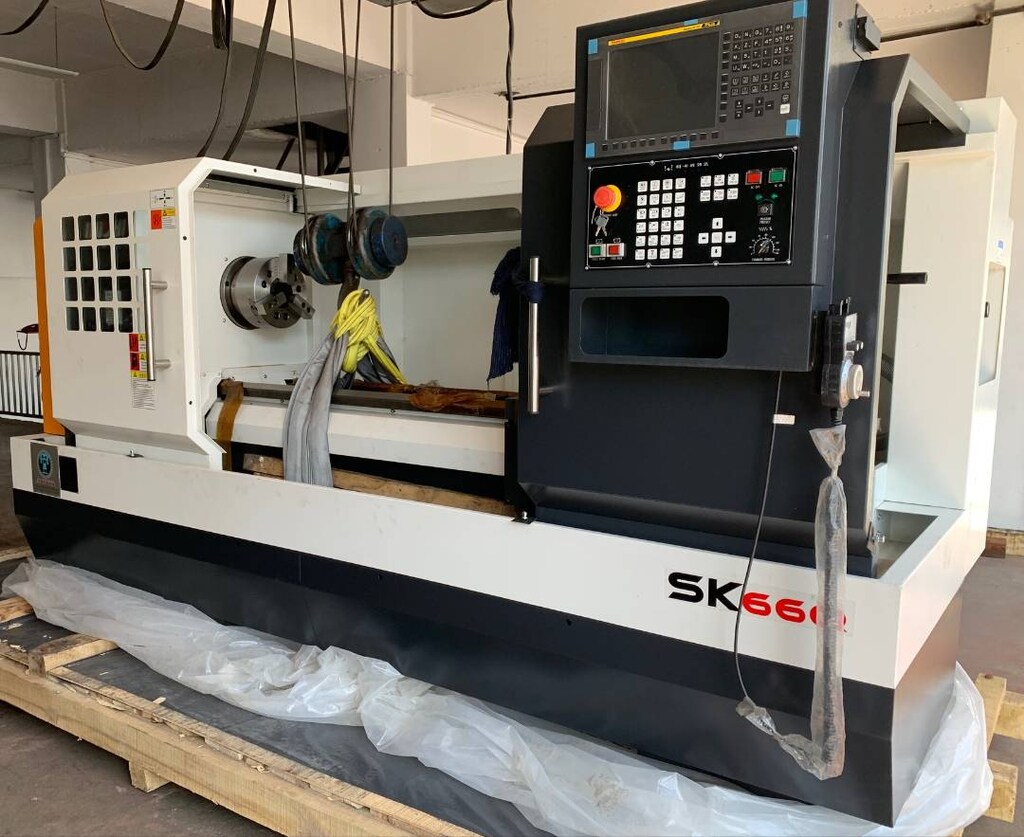

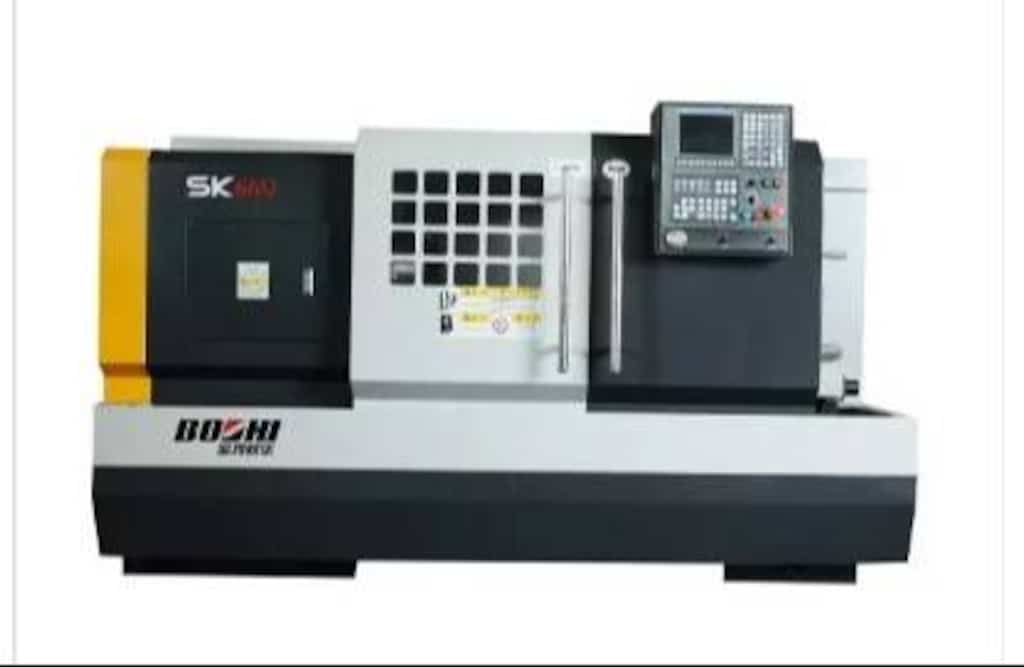

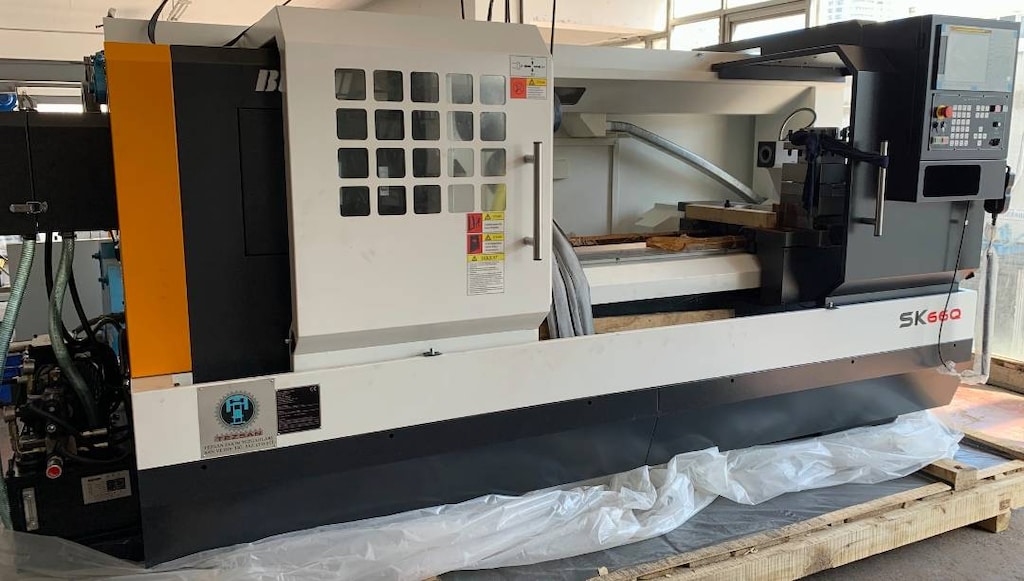

SK66Q Easy-operated CNC Lathe

Item

SK66Q

Max. swing over bed (mm)

φ660

Max. swing over slide (mm)

φ440

Max. turning dia. (mm)

φ550

Max. work length (mm)

1460

Max. turning length (mm)

1320

Spindle taper hole (mm)

Φ82

Thru-hole of hollow chuck

φ52

Spindle nose

ISO702/ⅠA 28

Spindle speed (r/min)

3-gear stepless 21-1620

H:1620-1620 M:66-660 L:21-210

Max. output torque of spindle (N.m)

800

Max. rapid traverse (m/min)

X-axis:6 Z-axis:8 (See OPERATOR’S MANUAL---ELECTRICAL

PARTS for details)

Pitch of screw (mm)

X direction: 5 / Z direction: 6

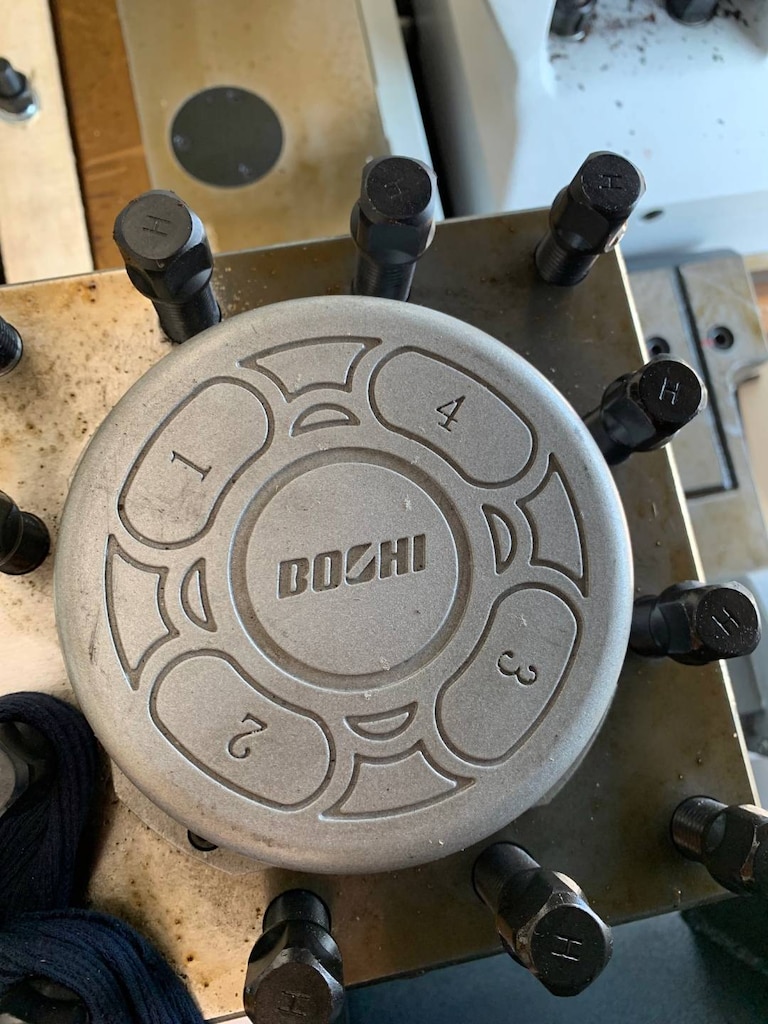

Capacity of turret

4

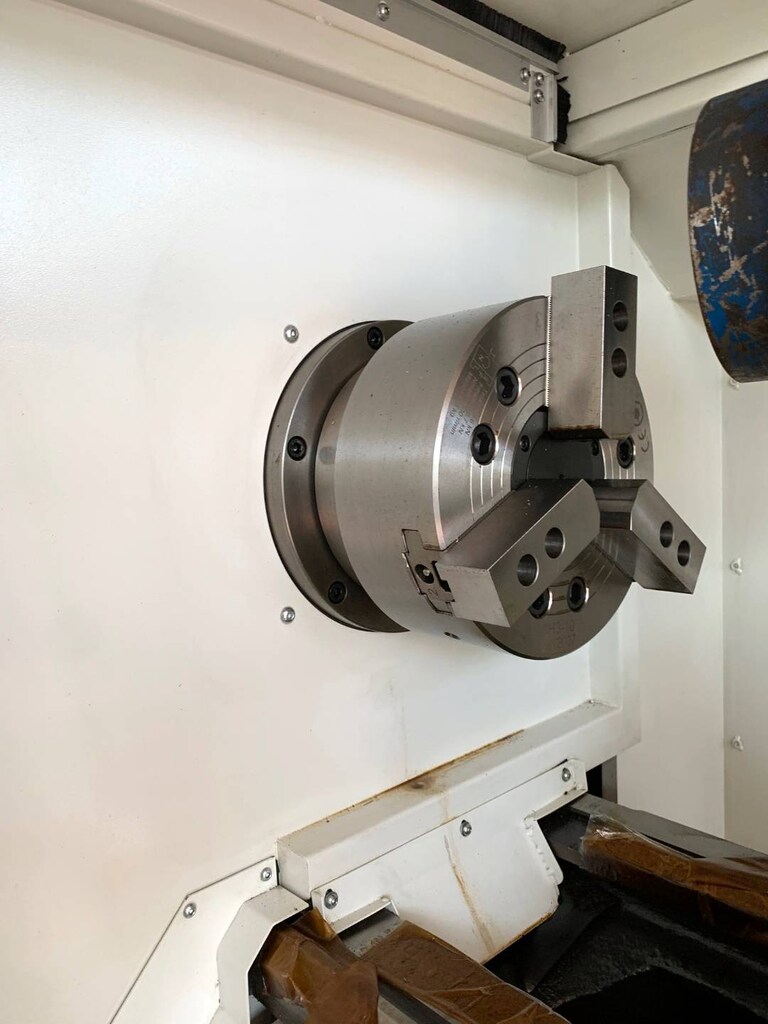

10” Hidrolik Aynalı

Item

SK66Q

Max. permissible tool section (mm×mm)

25×25

Travel of turret (mm)

X direction: 275/210

Z direction: 1350

Dia. of tailstock quill (mm)

φ75

Taper of tailstock quill (MT No.)

MT No.5

Max. travel of tailstock quill(mm)

150

Cross travel of tailstock (mm)

±15

Main motor

DP132M-4 7.5Kw frequency inverting motor

Coolant pump

LDPB2-15 180W

V belt

B82(MITSUBOSHI) 4 pcs

Dimension (L×W×H) mm× mm× mm

750

2420×1680×1850

1000

2670×1680×1850

1500

3170×1680×1850

2000

3670×1680×1850

Packing size (L×W×H) mm× mm× mm

750

2550(2870) ** ×1860×2370

1000

2800(3120) ** ×1860×2370

1500

3300(3620) ** ×1860×2370

2000

3800(4120) ** ×1860×2370

Net weight of machine kg

750

2050

1000

2100

1500

2150
