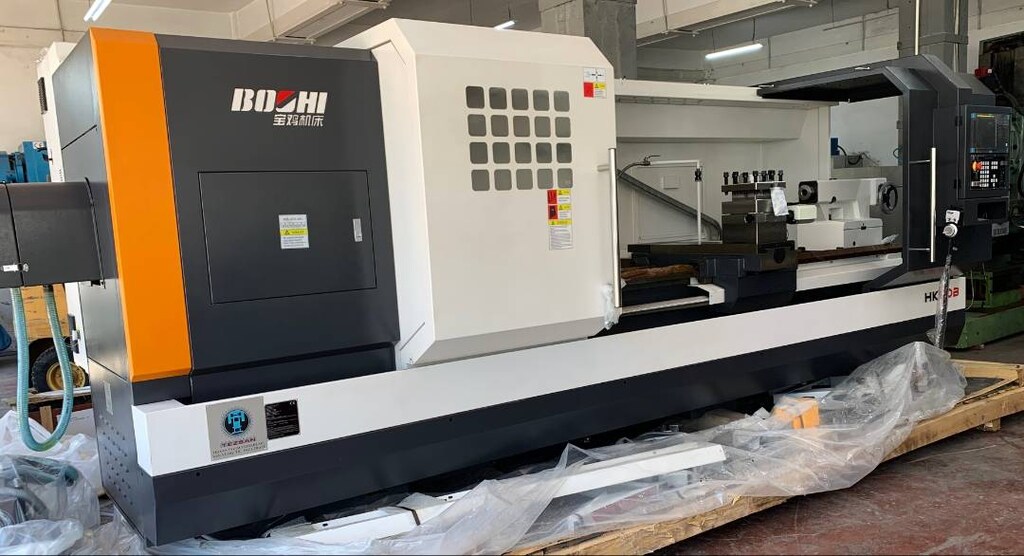

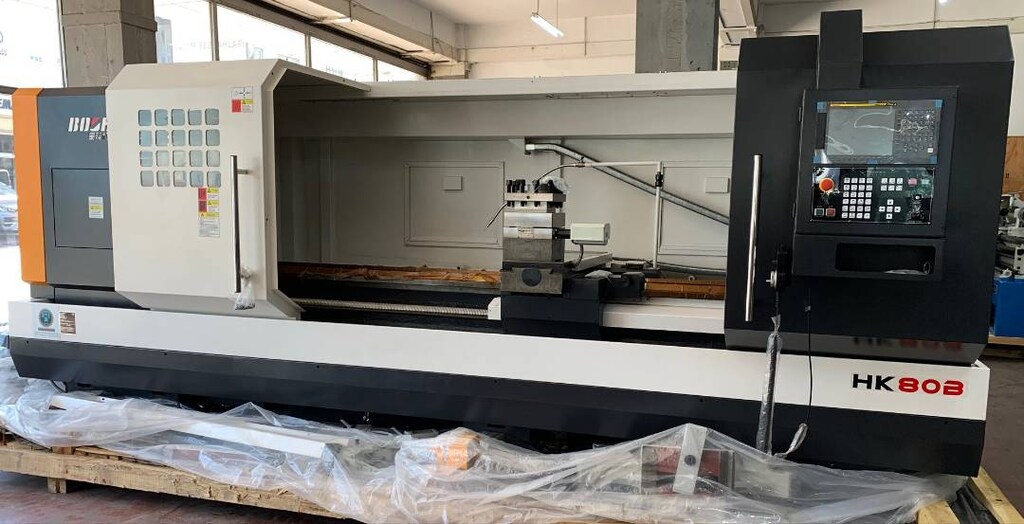

Baoji / HK80B / 3000mm

ITEMS UNIT

PARAMETERS

HK80B

Capacity

Max. swing over bed mm Φ800

Max. swing over

slide

mm

Φ500

Max. machining dia. mm Φ740

Distance between

centers

mm

1000/1500/3000

Max. turning length mm 2760(Vertical 4-station)

Bed way width mm 560

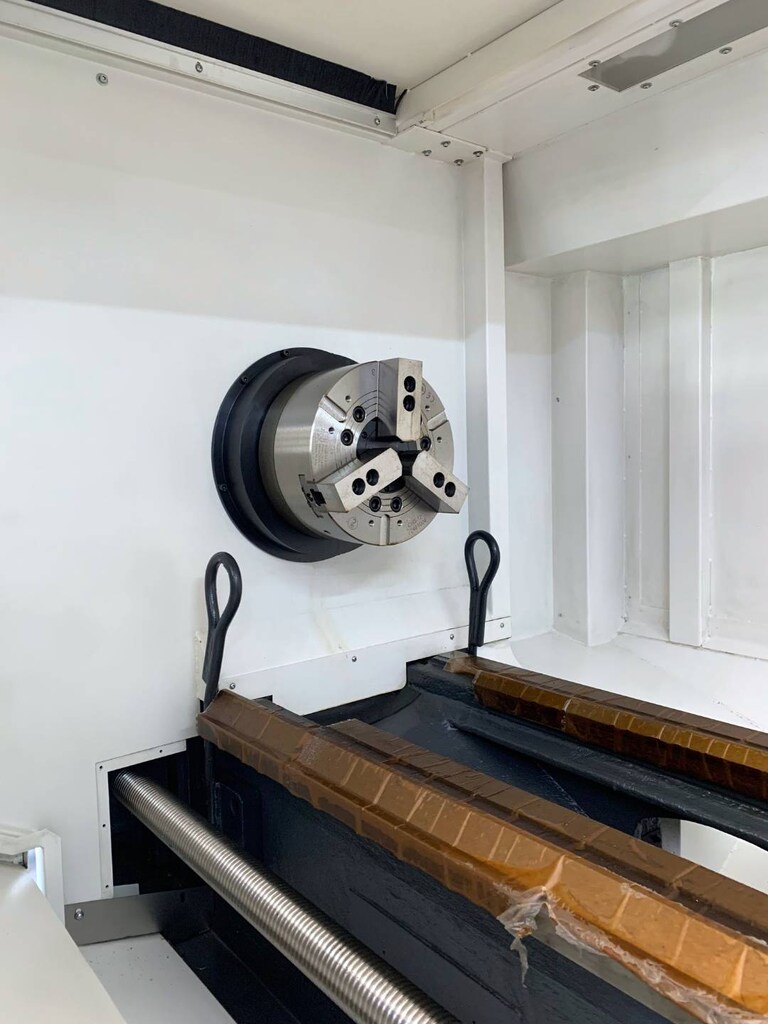

Spindle

Spindle thru-hole mm φ105

Spindle nose A1-11

Spindle speed r/min H 112~1120 M 37~373 L 20~210

Spindle motor power kW

11

(Freq. changing motor)

Feed

X travel mm 370

Z travel mm 760

X/Z-axis motor

power

kW 1.8/2.5

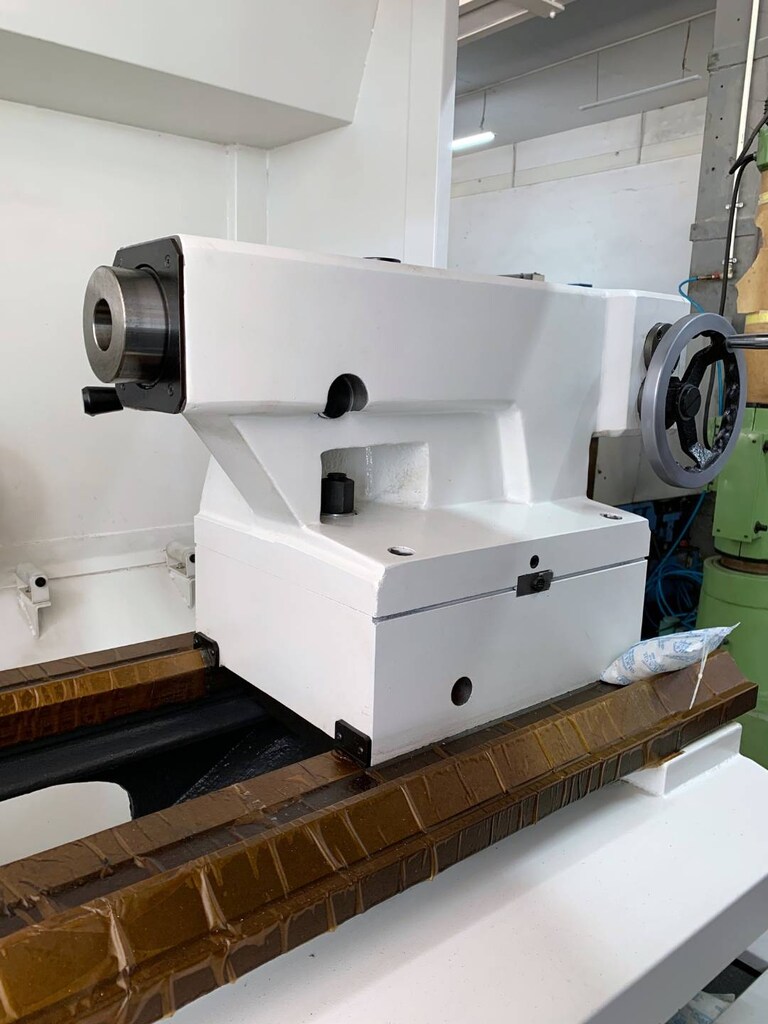

Tailstock

Quill diameter mm φ100

Quill travel mm 250

Quill taper Morse No.5

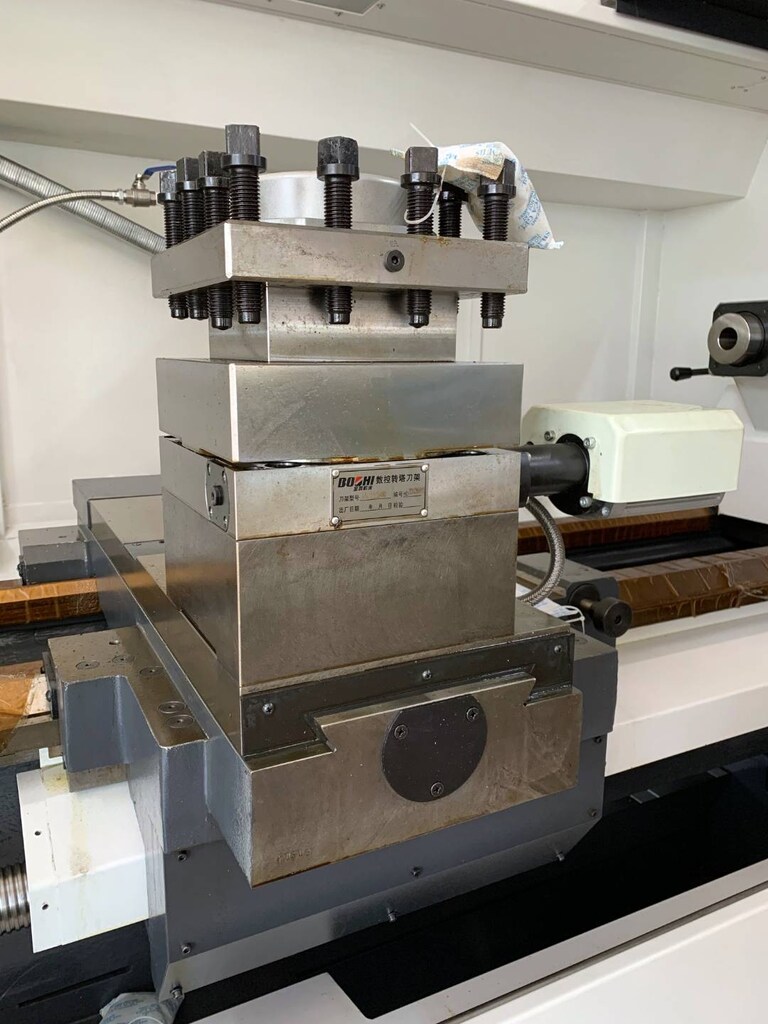

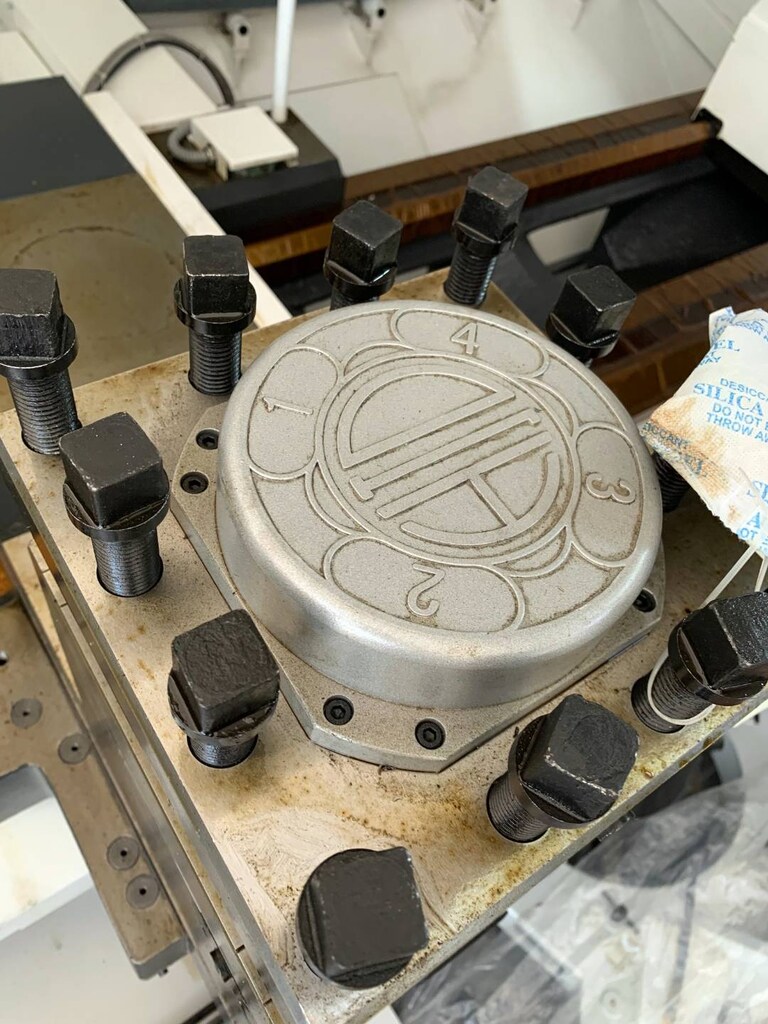

Turret

X/Z-axis rapid

traverse rate

m/min

6/7

Number of stations 4/6

Tool section mm 32×32

Others

Power source kVA 30

Dimensions(L×W×H) mm 3500×1580×1850

Weight kg 4800
