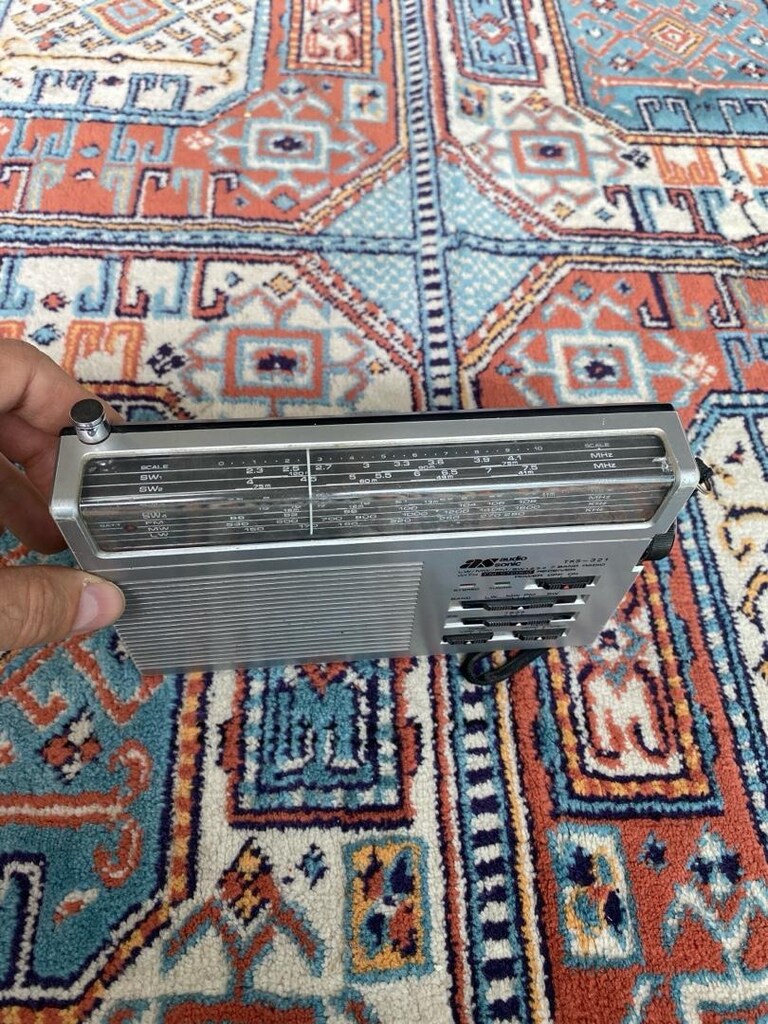

Audio Sonic LW/MW/FM/SW 7-Band Radio Receiver TKS-321

Almancı Dedemden kalma çalışıp çalışmadığını bilmiyorum özellikleri internette şu çıkıyor.Main principle

Superheterodyne (common)

Wave bands

Broadcast, Long Wave, more than 2 x SW plus FM or UHF.

Power type and voltage

Dry Batteries / AA: 4 x 1,5 Volt

Loudspeaker

Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

Material

Plastics (no bakelite or catalin)

from Radiomuseum.org

Model: LW/MW/FM/SW 7-Band Radio Receiver TKS-321 - Audio Sonic Deutschland;

Shape

Very small Portable or Pocket-Set (Handheld) < 8 inch.

Dimensions (WHD)

180 x 115 x 34 mm / 7.1 x 4.5 x 1.3 inch

Notes

TKS-321 ist eng verwandt mit dem Sangean S-786L, Modell mit vertikaler Antenne

2 Anschlüsse für Zweitlautsprecher / Kopfhörer. Anschluss für Netzgerät

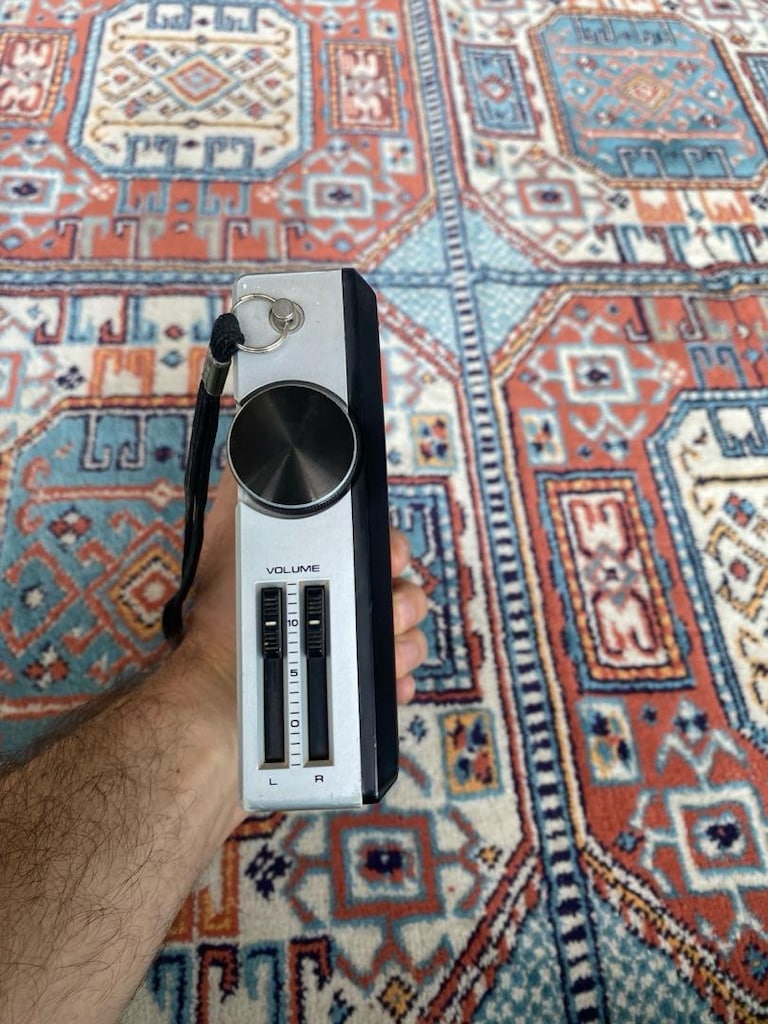

2 Schieberegler, bei Kopfhörer L + R, bei Lautsprecher nur der hintere Regler wirksam. Kopfhörerwiedergabe ergibt FM-Stereo

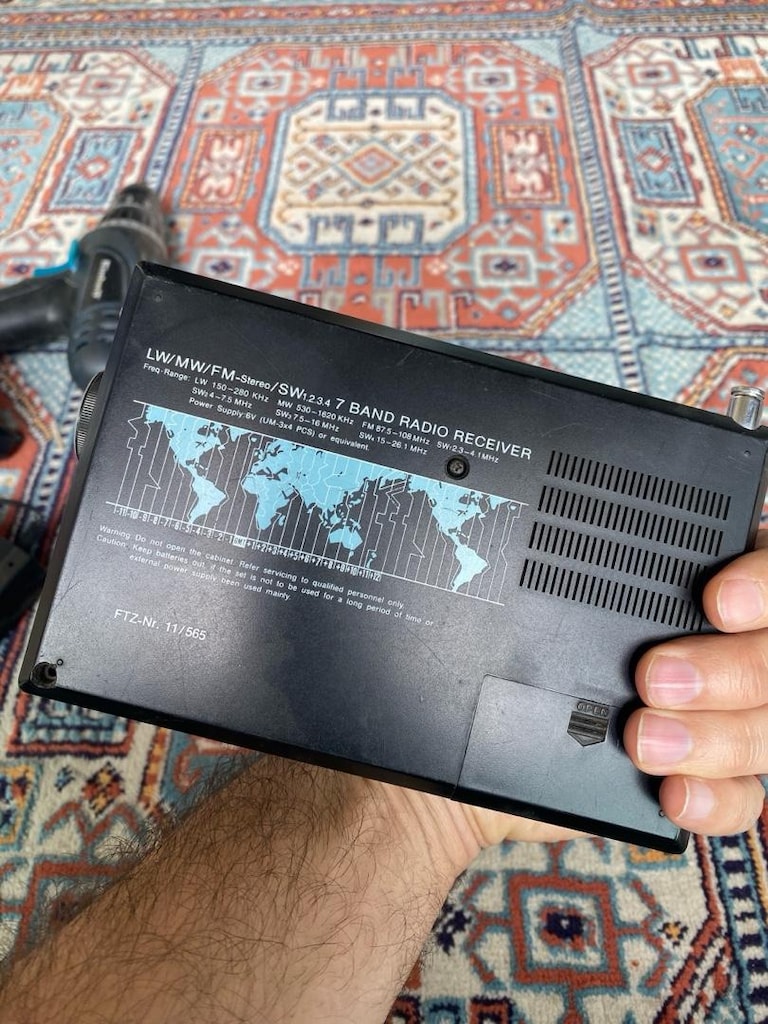

LW: 150 - 280 kHz

MW: 530 - 1620 kHz

KW1: 2.3 - 4.1 MHz

KW2: 4 - 7.5 MHz

KW3: 7.5 - 16 MHz

KW4: 15 - 26.1 MHz

FM (Stereo): 87.5 - 108 MHz

Net weight (2.2 lb = 1 kg)

0.5 kg / 1 lb 1.6 oz (1.101 lb)

Author

Model page created by Bruce Cohen. See "Data change" for further contributors.
